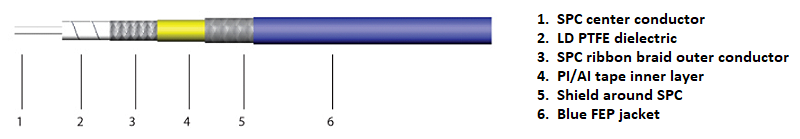

FSA Cable Structure
High Performance Low Loss Coaxial Cable

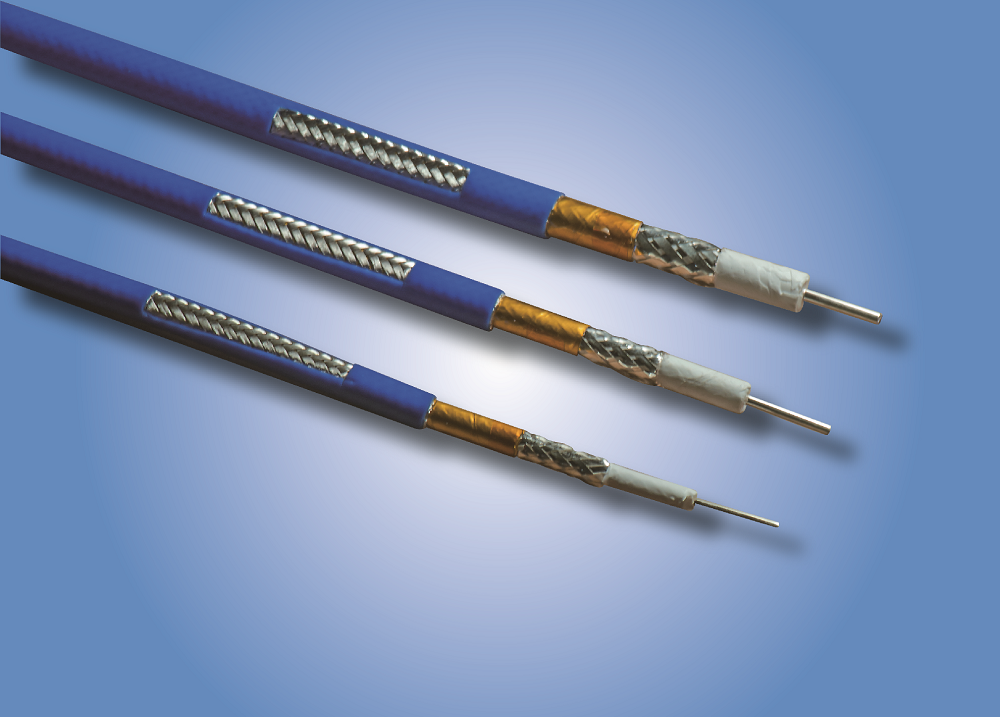

FSA Cable
Triple Shield High Performance Low Loss Coaxial Cable

FSA series cable provides an economical solution for applications requiring high strength and resistance to bending, turn, and crush. It offers low loss, high power handling, effective shielding (-100 dB), reliability, resistance to harsh environments, durability, and long life.

This cable series features a silver-plated copper center conductor, low density PTFE dielectric, flat ribbon braided outer conductor, triple shielding, and a UV and corrosion resistant blue FEP outer jacket. It accepts standard crimp-on and solder-on connectors and is especially suited for use on commercial and military aircraft and ship and ground-based weapons systems. It is available for quick delivery as cable or finished cable assemblies with custom labeling. There is no minimum order quantity.
Features
  • - Meets MIL-C-17
  • - Low loss
  • - High power handling
  • - Good shielding
  • - Good electrical properties
  • - Rugged
  • - Long service life
  • - Meets UL, NEC, and CSA standards
  •
    Applications
  • - ECM & LRU systems
  • - High power
  • - Outdoor
  • - Base stations
  • - Test cable assemblies
  • - Wireless stations
  • - Ground systems
  • High Performance Low Loss Coaxial Cable

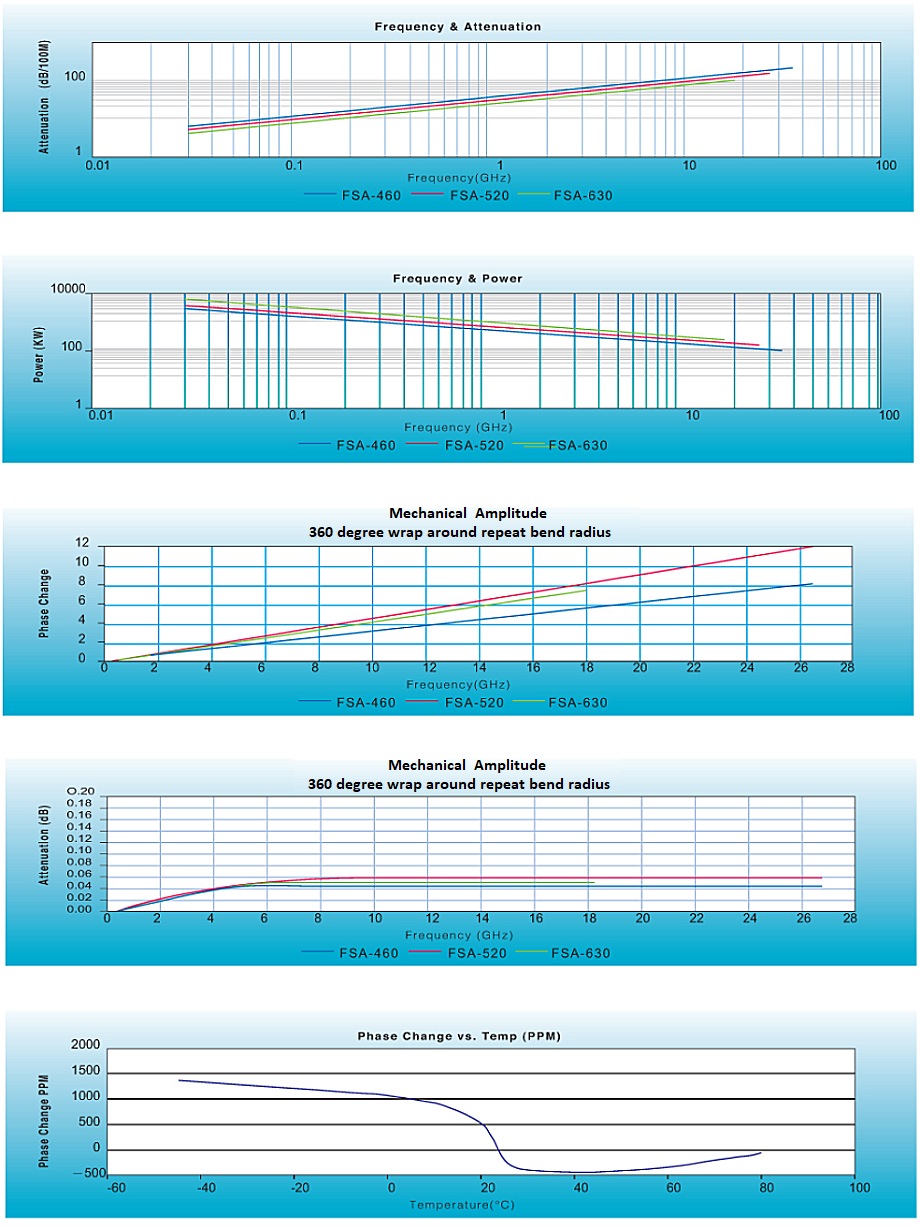

    Performance Data
    Replacement List
    MT Times Astrola Harbour MCC Semelex H+S Spec
    FSA-460 SFT-142 32022 LL160 UFA147A HP160s SF-102 PDF Spec
    FSA-520 SFT-205 32055 LL142 UFA205A HP190s SF-104 PDF Spec
    FSA-630 SFT-304 32051 LL392 HP305s PDF Spec
