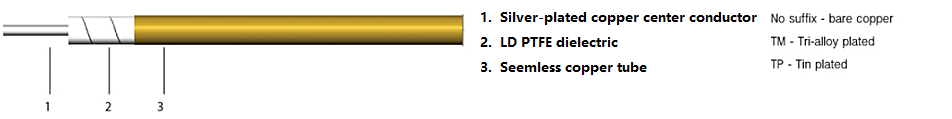

FSD Cable Structure
Low Loss Semi Rigid Coaxial Cable

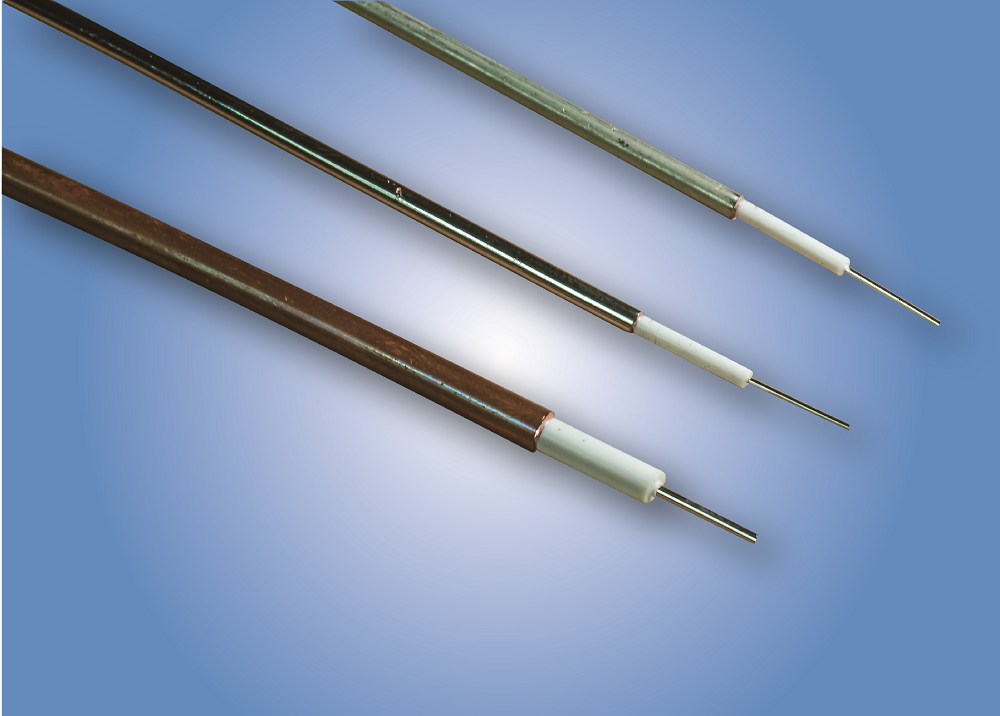

FSD Cable
Low Loss Semi-Rigid Coaxial Cable

FSD series semi-rigid cable provides lower loss, lighter weight, higher power handling, and less temperature-related phase change than competing cables.

It features a silver-plated copper center conductor, low density PTFE dielectric instead of solid PTFE, and a solid copper tube outer conductor and uses the same solder-on connectors as standard semi-rigid cable. Typical FSD cable applications include test setups, interconnection, and instrumentation. It is available for quick delivery as cable or finished cable assemblies with custom labeling. There is no minimum order quantity.
Features
  • - Low loss
  • - Light weight
  • - Higher power handling
  • - Wide temperature operating range
  • - Less temperature-related phase change
  • - No core extension after temperature cycling
  •
    Applications
  • - Aerospace
  • - Plate-to-plate connection
  • - Card interconnection
  • - Cabinet jumpers
  • - Airborne radar
  • - Missile systems
  • - Phased array radars
  • - Feed networks
  • - Instrumentation
  • Low Loss Semi Rigid Coaxial Cable

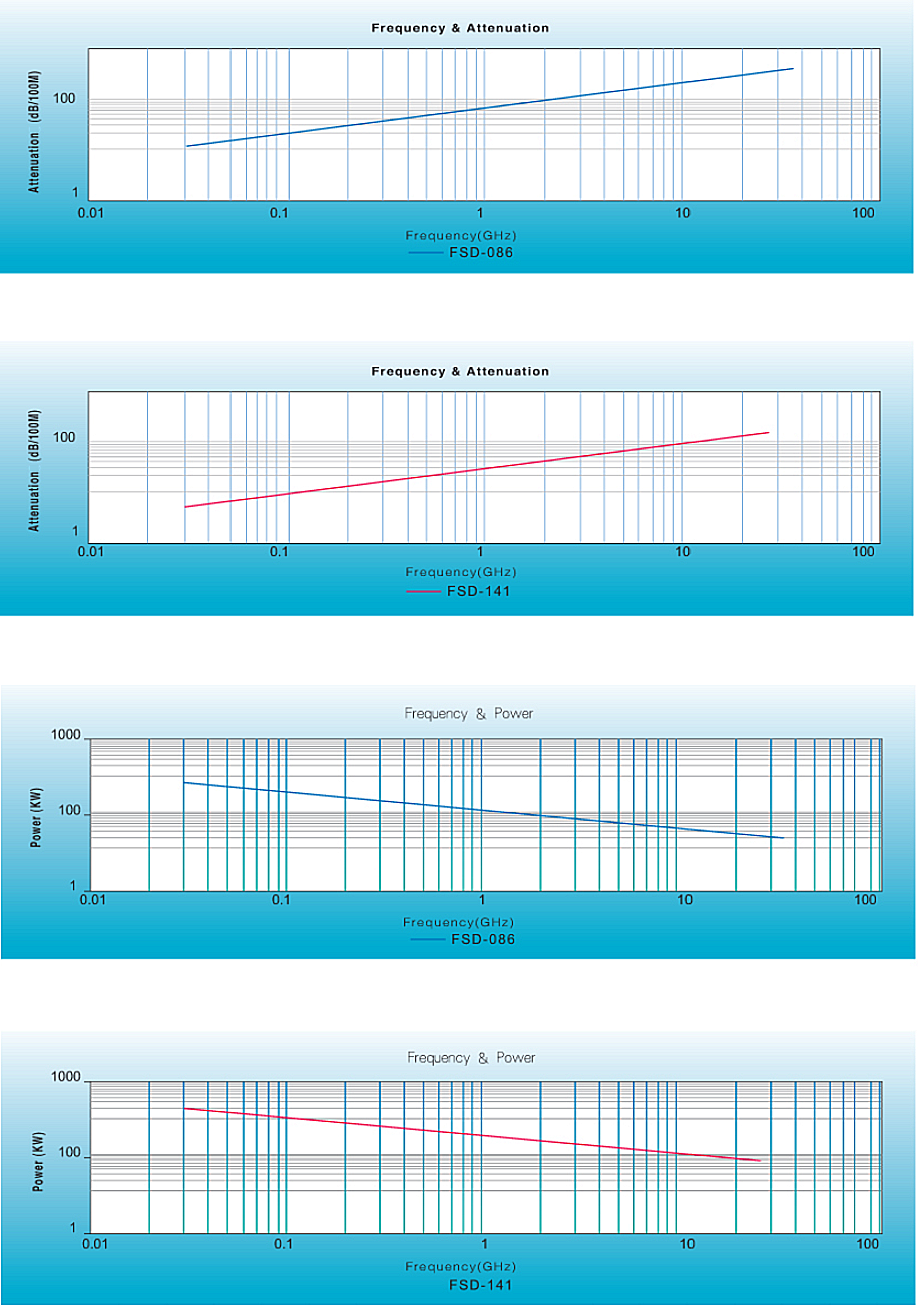

    Performance Data
    Replacement List
    MT Times MCC Spec
    FSD 086 CLL50086 UT-085-LL PDF Spec
    FSD 141 CLL50141 UT-141-LL PDF Spec
    FSD-120 UT-120-LL
