Power Amplifiers 18 to 40 GHz

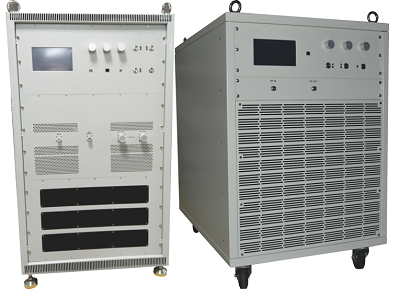

18-40 GHz Solid State Power Amplifiers (SSPAs)

Our 18-40 GHz broadband RF power amplifier series uses advanced gallium nitride (GaN) technology and offers high efficiency, ultra-wide bandwidth, 1-80 W RF output, ruggedness, and high reliability.

Microwave Town can tailor existing amplifiers from this series to meet your needs or design and manufacture custom amplifiers to your specifications.

An END-USER STATEMENT must accompany all international orders and domestic orders shipping outside the United States.
Features

  • - Multi-octave bandwidth
  • - High output power
  • - Adjustable gain
  • - High-efficiency GaN technology
  • - Wide dynamic range
  • - Low spurious signals
  • - Extremely load tolerant
  • - Low power consumption
  • - Built-in control, monitoring, and protection circuits
  • - Over voltage, reverse polarity, over temperature, and high VSWR protection
  • - High-resolution amplifier status display
  • - CE, ROHS, and REACH certified
  •
    ID Frequency (MHz) Description Gain (dB) Psat (dBm) Psat (W) Spec
    MTPA1826-1 18000.00-26500.00 1 W, 18-26.5 GHz Microwave Amplifier 30 30 1 PDF Spec
    MTPA1826-10 18000.00-26500.00 10 W, 18-26.5 GHz Microwave Amplifier 40 40 10 PDF Spec
    MTPA1826-16 18000.00-26500.00 16 W, 18-26.5 GHz Microwave Amplifier 40 40 16 PDF Spec
    MTPA1826-2 18000.00-26500.00 2 W, 18-26.5 GHz Microwave Amplifier 33 33 2 PDF Spec
    MTPA1826-20 18000.00-26500.00 20 W, 18-26.5 GHz Microwave Amplifier 43 43 20 PDF Spec
    MTPA1826-40 18000.00-26500.00 40 W, 18-26.5 GHz Microwave Amplifier 46 46 40 PDF Spec
    MTPA1826-5 18000.00-26500.00 5 W, 18-26.5 GHz Microwave Amplifier 37 37 5 PDF Spec
    MTPA2635-15 26500.00-35000.00 15 W, 26.5Ghz-35Ghz Microwave Amplifier 42 42 15 PDF Spec
    MTPA2635-20 26500.00-35000.00 20 W, 26.5Ghz-35Ghz Microwave Amplifier 43 43 20 PDF Spec
    MTPA2640-1 26500.00-40000.00 1 W, 26.5-40 GHz Microwave Amplifier 30 30 1 PDF Spec
    MTPA2640-10 26500.00-40000.00 10 W, 26.5-40 GHz Microwave Amplifier 40 40 10 PDF Spec
    MTPA2640-15 26500.00-40000.00 15 W, 26.5-40GHz Microwave Amplifier 42 42 15 PDF Spec
    MTPA2640-2 26500.00-40000.00 2 W, 26.5-40 GHz Microwave Amplifier 33 33 2 PDF Spec
    MTPA2640-20 26500.00-40000.00 20 W, 26.5-40 GHz Microwave Amplifier 43 43 20 PDF Spec
    MTPA2640-4 26500.00-40000.00 4 W, 26.5-40 GHz Microwave Amplifier 36 36 4 PDF Spec
    MTPA2640-40 26500.00-40000.00 40 W, 26.5-40 GHz Microwave Amplifier 46 46 40 PDF Spec
    MTPA2640-5 26500.00-40000.00 5 W, 26.5-40 GHz Microwave Amplifier 37 37 5 PDF Spec
    MTPA2932-20 29000.00-32000.00 20 W, 29-32GHz Microwave Amplifier 43 43 20 PDF Spec
    MTPA3536-8000 35000.00-36000.00 8000 W, 35-36 GHz Microwave Amplifier 69 69 8000 PDF Spec
