Power Amplifiers 30 MHz to 6 GHz
30 MHz-6 GHz Solid State Power Amplifiers (SSPAs)

Based on the latest gallium nitride (GaN) technology, our 30 MHz-6 GHz amplifiers offer ultra-wide bandwidth, high linearity (excellent monotone ACPR and IMD3 shape), and 16-3000 W RF output.

Microwave Town can tailor existing amplifier models from this series to meet your needs or design and manufacture custom amplifiers to your specifications.

An END-USER STATEMENT must accompany all international orders and domestic orders shipping outside the United States.
Features

  • - Very broadband
  • - High linearity
  • - High output power
  • - High-efficiency GaN technology
  • - Low power consumption
  • - Over voltage, reverse polarity, over temperature, and high VSWR protection
  • - CE, ROHS, and REACH certified
  •

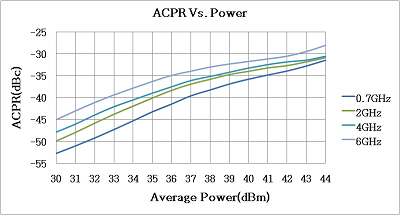

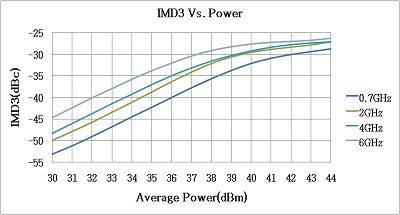

    30 MHz-6 GHz microwave RF amplifier 50 W linearity data

    ID Frequency (MHz) Description Gain (dB) Psat (dBm) Psat (W) Spec
    MTPA0032P7-2 30.00-2700.00 2 W,(P1dB)30M-2.7 GHz Microwave Amplifier 30 30(P1dB) 2(P1dB) PDF Spec
    MTPA00506-20 50.00-6000.00 20 W, 50M-6 GHz Microwave Amplifier 43 43 20 PDF Spec
    MTPA00801-100 80.00-1000.00 100 W, 0.08-1 GHz Microwave Amplifier 50 50 100 PDF Spec
    MTPA00801-1000 80.00-1000.00 1000 W, 0.08-1 GHz Microwave Amplifier 60 60 1000 PDF Spec
    MTPA00801-2000 80.00-1000.00 2000 W, 0.08-1 GHz Microwave Amplifier 63 63 2000 PDF Spec
    MTPA00801-3000 80.00-1000.00 3000 W, 0.08-1 GHz Microwave Amplifier 65 65 3000 PDF Spec
    MTPA0104-50 1000.00-4000.00 50 W, 1-4 GHz Microwave Amplifier 47 47 50 PDF Spec
    MTPA0106-250 1000.00-6000.00 250 W, 1-6GHz Microwave Amplifier 54 54 250 PDF Spec
    MTPA012P5-1000 1000.00-2500.03 1000 W, 1-2.5 GHz Microwave Amplifier 60 60 1000 PDF Spec
    MTPA012P5-200 1000.00-2500.00 200 W, 1-2.5 GHz Microwave Amplifier 53 53 200 PDF Spec
    MTPA012P5-300 1000.00-2500.01 300 W, 1-2.5 GHz Microwave Amplifier 55 55 300 PDF Spec
    MTPA012P5-500 1000.00-2500.02 500 W, 1-2.5 GHz Microwave Amplifier 57 57 500 PDF Spec
    MTPA0206-100 2000.00-6000.00 100 W, 2-6 GHz Microwave Amplifier 50 50 100 PDF Spec
    MTPA0206-20 2000.00-6000.00 20 W, 2-6 GHz Microwave Amplifier 43 43 20 PDF Spec
    MTPA0206-200 2000.00-6000.00 200 W, 2-6 GHz Microwave Amplifier 53 53 200 PDF Spec
    MTPA0206-50 2000.00-6000.00 50 W, 2-6 GHz Microwave Amplifier 47 47 50 PDF Spec
    MTPA0P704-100 700.00-4000.00 100 W, 0.7-4 GHz Microwave Amplifier 50 50 100 PDF Spec
    MTPA0P704-200 700.00-4000.00 200 W, 0.7-4 GHz Microwave Amplifier 53 53 200 PDF Spec
    MTPA0P704-50 700.00-4000.00 50 W, 0.7-4 GHz Microwave Amplifier 47 47 50 PDF Spec
    MTPA0P706-16 MTPA0P706-20 700.00-6000.00 16 W, /20 W, 0.7-6 GHz Microwave Amplifier 42 42 16/20 PDF Spec
    MTPA0P706-50 700.00-6000.00 50 W, 0.7-6 GHz Microwave Amplifier 47 47 50 PDF Spec
    MTPA0P72P7-100 700.00-2700.00 100 W, 0.7-2.7 GHz Microwave Amplifier 50 50 100 PDF Spec
    MTPA0P72P7-16 MTPA0P72P7-20 700.00-2700.00 16 W, /20 W, 0.7-2.7 GHz Microwave Amplifier 42 42 16/20 PDF Spec
    MTPA0P72P7-200 700.00-2700.00 200 W, 0.7-2.7 GHz Microwave Amplifier 53 53 200 PDF Spec
    MTPA0P72P7-5 700.00-2700.00 5 W, 0.7-2.7 GHz Microwave Amplifier 37 37 5 PDF Spec
    MTPA0P82P5-500 800.00-2500.00 500 W, 0.8-2.5 GHz Microwave Amplifier 57 57 500 PDF Spec
    MTPA2P506-20 2500.00-6000.00 20 W, 2.5-6 GHz Microwave Amplifier 43 43 20 PDF Spec
    MTPA2P506-200 2500.00-6000.00 200 W, 2.5-6 GHz Microwave Amplifier 53 53 200 PDF Spec
    MTPA2P506-250 2500.00-6000.00 250 W, 2.5-6 GHz Microwave Amplifier 54 54 250 PDF Spec
    MTPA2P506-300 2500.00-6000.00 300 W, 2.5-6 GHz Microwave Amplifier 55 55 300 PDF Spec
    MTPA2P506-50 2500.00-6000.00 50 W, 2.5-6 GHz Microwave Amplifier 47 47 50 PDF Spec
    MTPA2P506-500 2500.00-6000.00 500 W, 2.5-6 GHz Microwave Amplifier 57 57 500 PDF Spec
    MTPA2P57P5-50 2500.00-7500.00 50 W, 2.5-7.5 GHz Microwave Amplifier 47 47 50 PDF Spec
