FSC Cable Structure

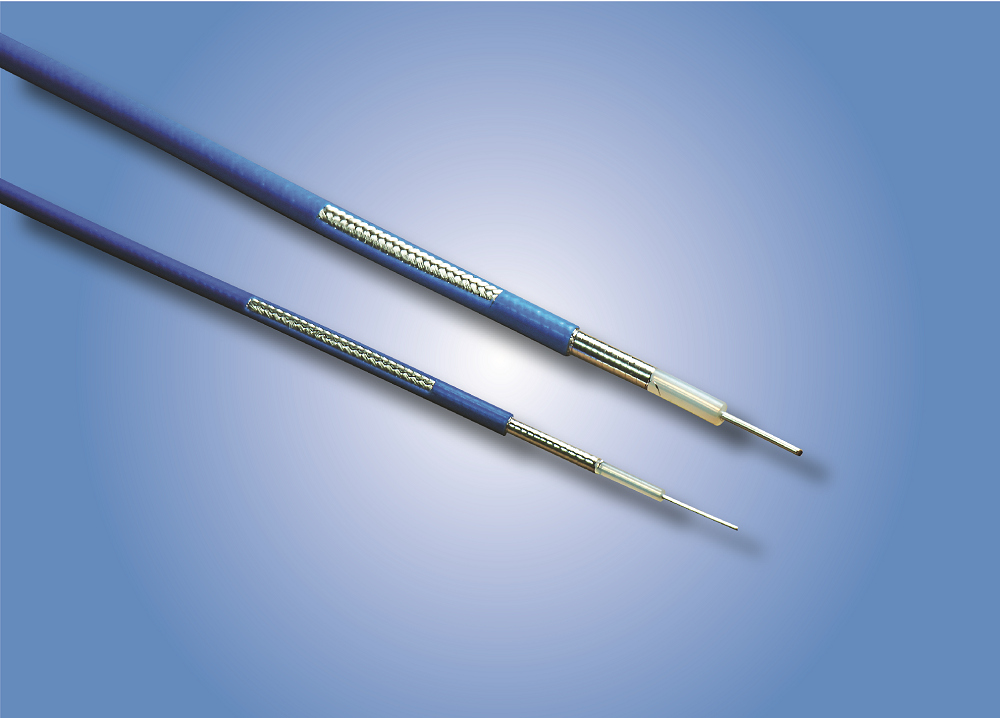

Semi Flexible Coaxial Cable
FSC Cable
Low Cost Semi-Flexible Coaxial Cable

FSC series cable provides an economical conformable cable replacement for applications requiring greater flexibility and bending cycles. This series matches the performance of Times TFlex cables and uses the same solder-on connectors as standard semi-rigid cable.

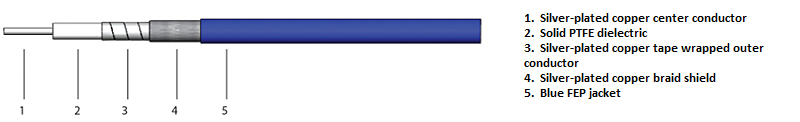

This cable consists of a silver-plated copper center conductor, solid PTFE dielectric, silver-plated copper tape outer conductor, silver-plated copper braid shield, and a UV and corrosion resistant blue FEP outer jacket. Typical applications for FSC series cables are test setups, interconnection, and instrumentation. It is available for quick delivery as cable or finished cable assemblies with custom labeling. There is no minimum order quantity.
Features
  • - Meets MIL-C-17
  • - Low cost
  • - Flexibility
  • - Greater bending cycles
  • - Good electrical properties
  • - Long service life
  • - Replacement for semi-rigid cable
  •
    Applications
  • - Card interconnection
  • - Cabinet jumpers
  • - Airborne radar
  • - Missile systems
  • - Phased array radars
  • - Feed networks
  • - Instrumentation
  • - Test setups
  • Semi Flexible Coaxial Cable

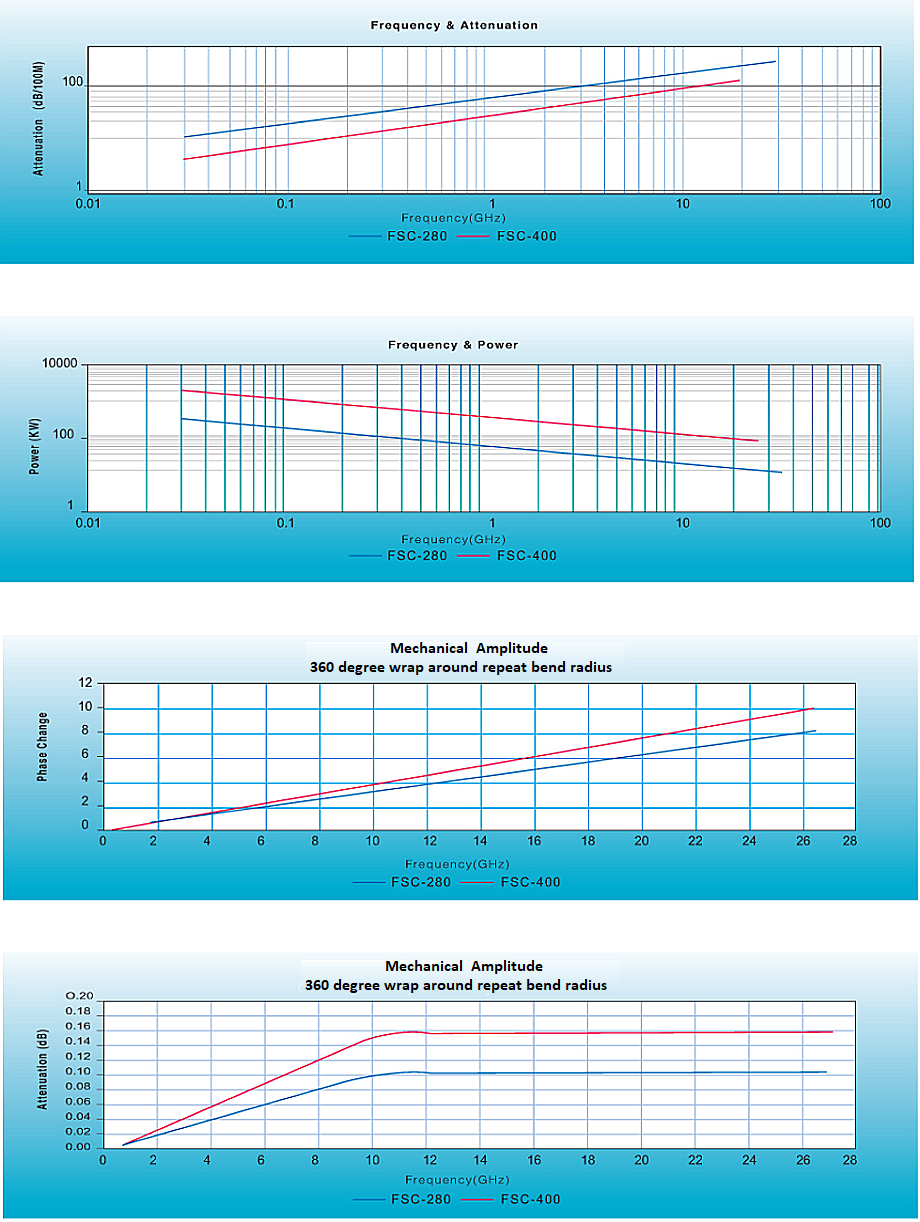

    Performance Data
    Replacement List
    MT Times Habia H+B Harbour Spec
    FSC-280 TFLEX-405 MULTIFLEX86 MULTIBEND86 SS405 PDF Spec
    FSC-400 TFLEX-402 MULTIFLEX141 MULTIBEND141 SS402 PDF Spec
