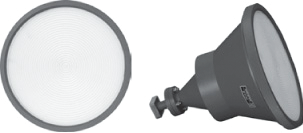

Waveguide Microwave Lens Antennas
| ID | Frequency(GHz) | Flange | VSWR(max) | Diameter (mm) |
|---|---|---|---|---|
| MT-LA-10 | 75.00-110.00 | UG-387/U | 1.60:1 | 400 |
| MT-LA-112 | 6.60-10.00 | UG51/U | 1.35:1 | 400 |
| MT-LA-137 | 5.40-8.20 | UG344/U | 1.35:1 | 400 |
| MT-LA-15 | 50.00-75.00 | UG-385/U | 1.60:1 | 400 |
| MT-LA-19 | 39.20-59.60 | UG-383/U | 1.60:1 | 400 |
| MT-LA-22 | 33.00-50.00 | UG-383/U | 1.50:1 | 400 |
| MT-LA-28 | 26.50-40.00 | UG599/U | 1.35:1 | 400 |
| MT-LA-34 | 21.70-33.00 | UG1530 | 1.35:1 | 400 |
| MT-LA-42 | 18.00-26.50 | UG595/U | 1.35:1 | 400 |
| MT-LA-51 | 14.50-22.00 | COM'L | 1.35:1 | 400 |
| MT-LA-62 | 12.00-18.00 | UG419/U | 1.35:1 | 400 |
| MT-LA-75 | 10.00-15.00 | COM'L | 1.35:1 | 400 |
| MT-LA-90 | 8.20-12.40 | UG39/U | 1.35:1 | 400 |
