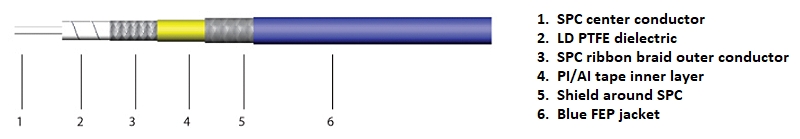

FSA Cable Structure

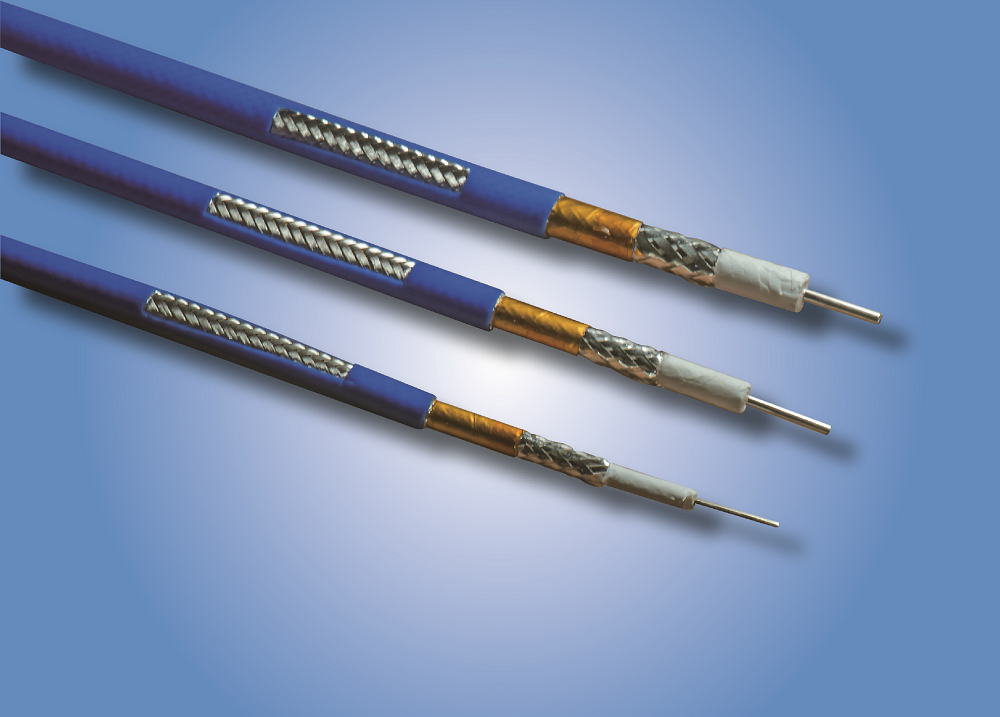

FSA Cable
Triple Shield High Performance Low Loss Coaxial Cable

FSA series cable provides an economical solution for applications requiring high strength and resistance to bending, turn, and crush. It offers low loss, high power handling, effective shielding (-100 dB), reliability, resistance to harsh environments, durability, and long life.

This cable series features a silver-plated copper center conductor, low density PTFE dielectric, flat ribbon braided outer conductor, triple shielding, and a UV and corrosion resistant blue FEP outer jacket. It accepts standard crimp-on and solder-on connectors and is especially suited for use on commercial and military aircraft and ship and ground-based weapons systems. It is available for quick delivery as cable or finished cable assemblies with custom labeling. There is no minimum order quantity.

Features


• - Meets MIL-C-17

• - Low loss

• - High power handling

• - Good shielding

• - Good electrical properties

• - Rugged

• - Long service life

• - Meets UL, NEC, and CSA standards

Applications


• - ECM & LRU systems

• - High power

• - Outdoor

• - Base stations

• - Test cable assemblies

• - Wireless stations

• - Ground systems

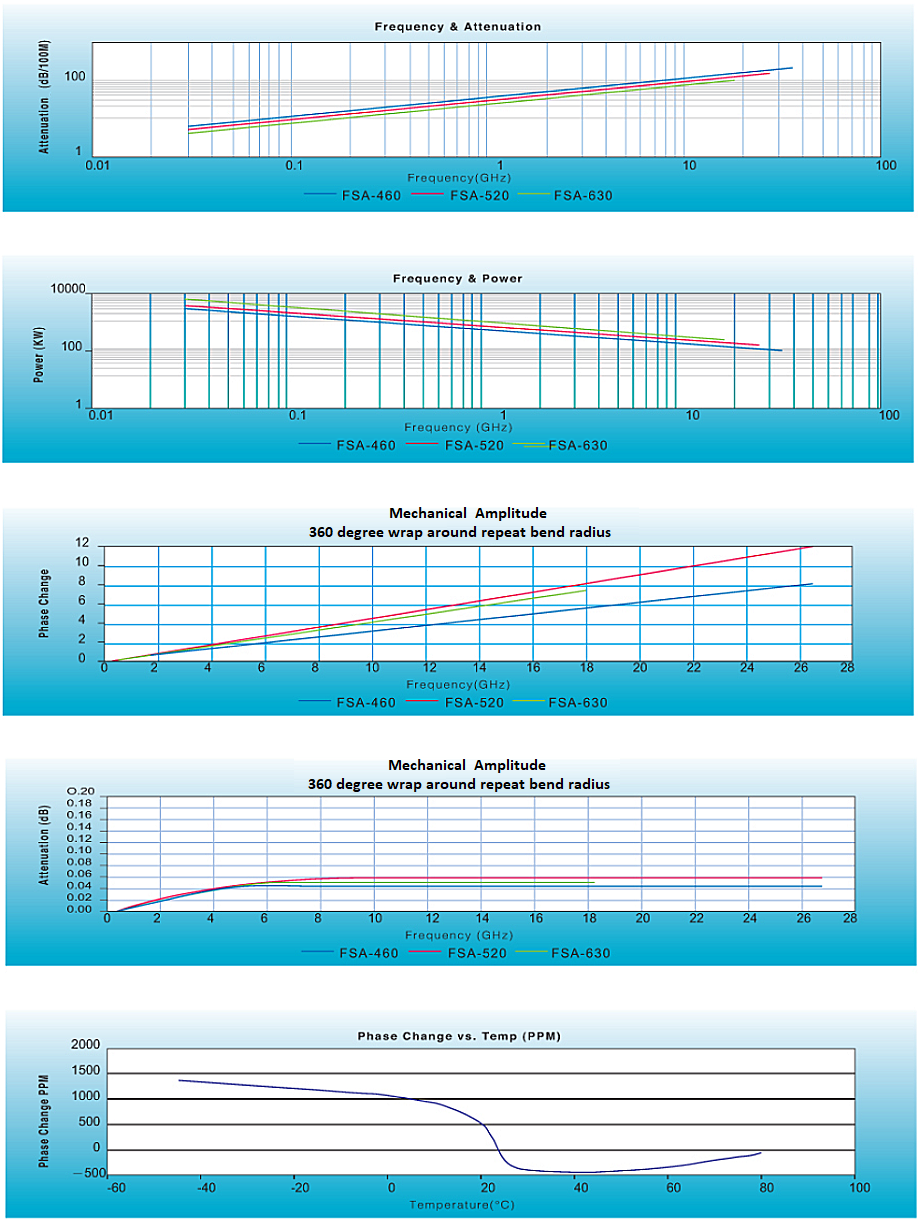

Performance Data
