FSB Cable Structure

FSB Cable
Ultra-Low Loss Phase Stable Coaxial Cable

The FSB cable series provides higher performance than typical low loss and phase stable cables. It offers extra low loss, light weight, and high phase stability versus mechanical and temperature change.

This cable series features a silver-plated copper center conductor, low density PTFE dielectric, silver-plated copper tape wrapping outer conductor, silver-plated copper braid shield, and grey FEP outer jacket. FSB series cable accepts standard solder-on connectors. Typical applications include military and phased-array radars, electronic warfare (EW), and mechanical equipment. It is available for quick delivery as cable or finished cable assemblies with custom labeling. We can also provide phase matching assemblies up to 67 GHz. There is no minimum order quantity.

Features


• - Meets MIL-C-17

• - Ultra-low loss

• - Excellent mechanical phase stability

• - Extra-low temperature-related phase change

• - Good electrical properties

• - Light weight

Applications


• - Military radars

• - Electronic warfare (EW)

• - Shipboard systems

• - Airborne platforms

• - System interconnection

• - Wireless stations

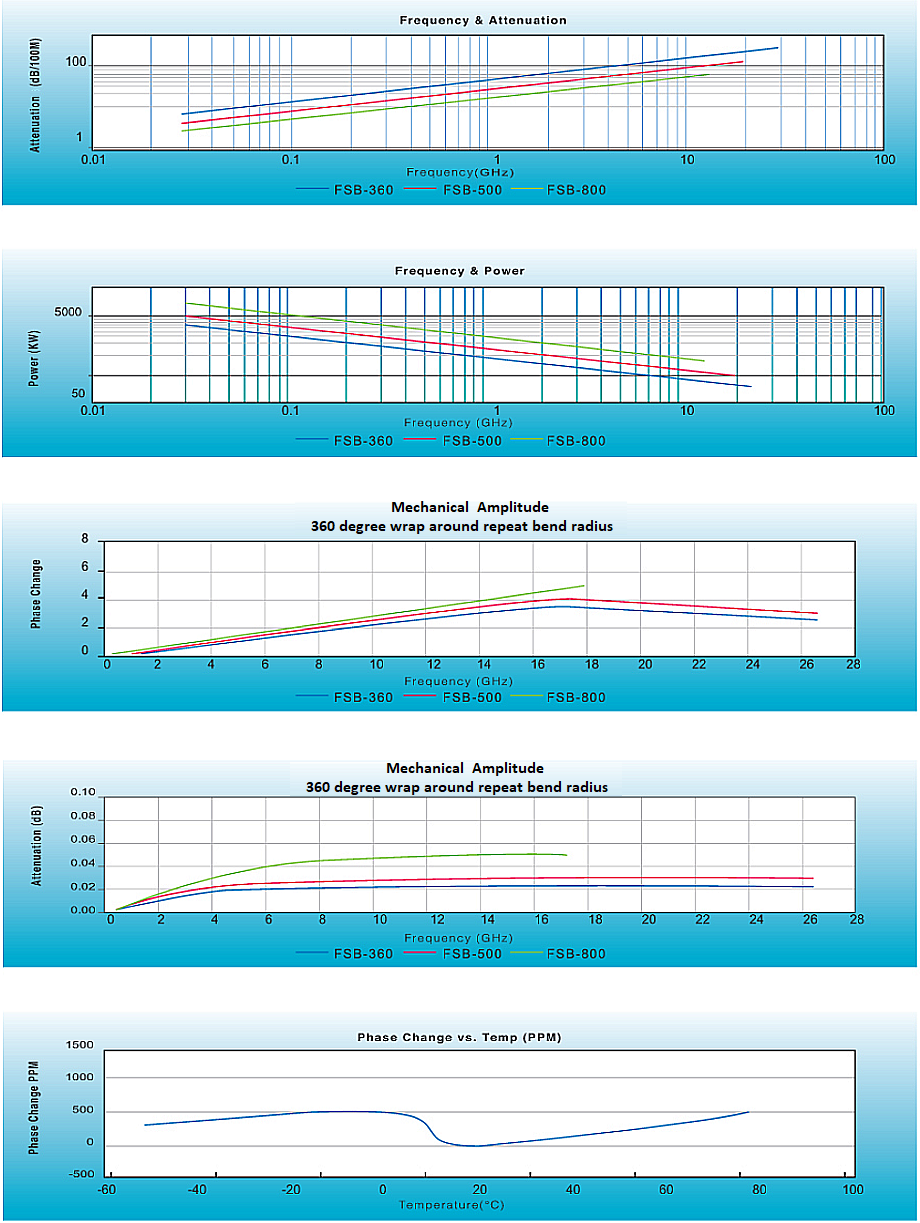

Performance Data
