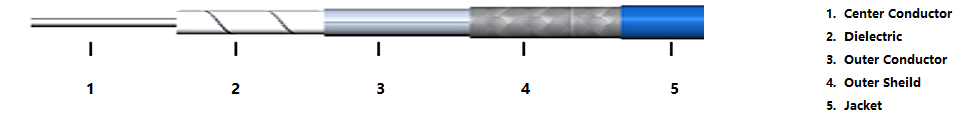

FSF Cable Structure

FSF Cable
Economical Low Loss Flexible Coaxial Cable

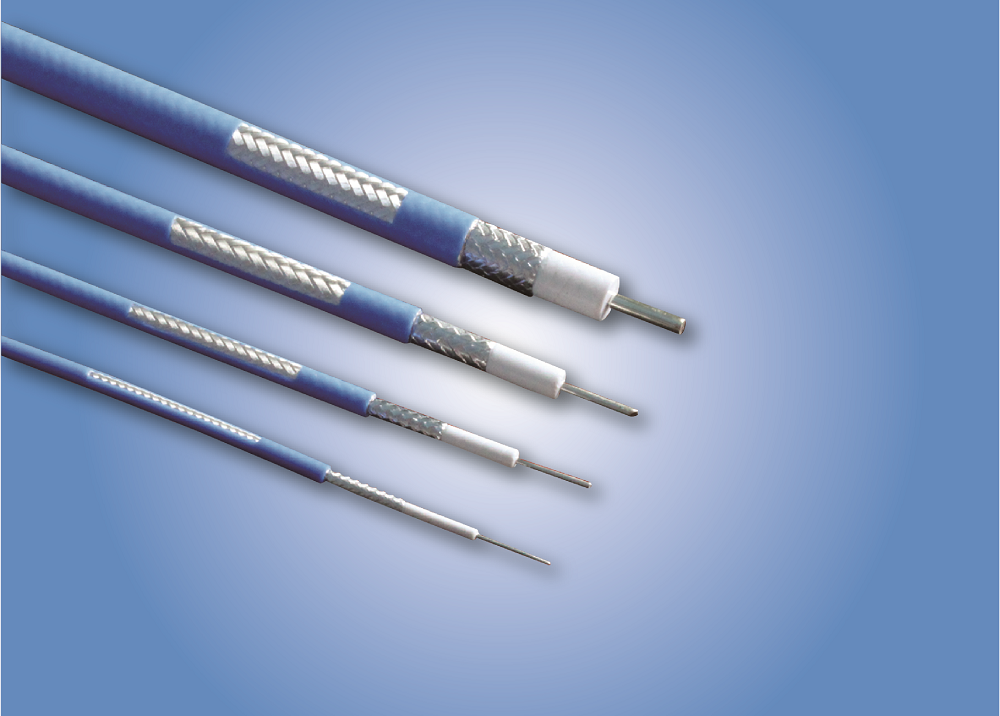

FSF series cable combines low cost with low loss while meeting military performance requirements. This cable uses a silver-plated copper center conductor, low-density PTFE tape core dielectric, AL tape outer conductor, and a UV and corrosion resistant blue FEP outer jacket. This cable series accepts standard crimp-on and solder-on connectors.

It is especially suited for longer cable assemblies. Typical FSF cable applications include interconnections, base stations, and wireless. It is available for quick delivery as cable or finished cable assemblies with custom labeling. There is no minimum order quantity.

Features


• - Meets MIL-C-17

• - Low cost

• - Low loss

• - Good amplitude stability

• - Good high temperature performance

• - Good fire resistance

• - Meets UL, NEC, and CSA standards

Applications


• - ECM & LRU systems

• - High power

• - Outdoor

• - Base stations

• - System interconnection

• - Wireless stations

Cable Comparison Sheet
