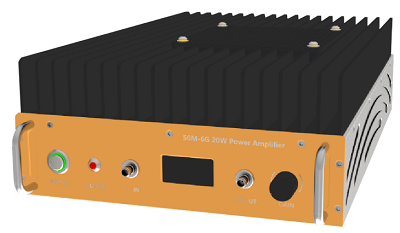

30 MHz-6 GHz Solid State Power Amplifiers (SSPAs)
Based on the latest gallium nitride (GaN) technology, our 30
MHz-6 GHz amplifiers offer ultra-wide bandwidth, high linearity
(excellent monotone ACPR and IMD3 shape), and 16-3000 W RF output.
Microwave Town can tailor existing amplifier models from this
series to meet your needs or design and manufacture custom amplifiers to
your specifications.
An END-USER STATEMENT must accompany all international orders and domestic orders shipping outside the United States.
Features
- Very broadband
- High linearity
- High output power
- High-efficiency GaN technology
- Low power consumption
- Over voltage, reverse polarity, over temperature, and high VSWR protection
- CE, ROHS, and REACH certified
| ID | Frequency (MHz) | Description | Gain (dB) | Psat(dBm) | Psat(W) | Detail Spec |
|---|---|---|---|---|---|---|
| MTPA0032P7-2 | 30 - 2700 | 2W (P1db), 30MHz-2.7GHz Microwave Amplifier | 30 | 30 | 2 | PDF Spec |
| MTPA00506-20 | 50-6000 | 20W, 50MHz-6GHz Microwave Amplifier | 43 | 43 | 20 | PDF Spec |
| MTPA00801-100 | 80.00-1000.00 | 100 W, 0.08-1 GHz Microwave Amplifier | 50 | 50 | 100 | PDF Spec |
| MTPA00801-1000 | 80.00-1000.00 | 1000 W, 0.08-1 GHz Microwave Amplifier | 60 | 60 | 1000 | PDF Spec |
| MTPA00801-2000 | 80.00-1000.00 | 2000 W, 0.08-1 GHz Microwave Amplifier | 63 | 63 | 2000 | PDF Spec |
| MTPA00801-3000 | 80.00-1000.00 | 3000 W, 0.08-1 GHz Microwave Amplifier | 65 | 65 | 3000 | PDF Spec |
| MTPA0104-50 | 1000.00-4000.00 | 50 W, 1-4 GHz Microwave Amplifier | 47 | 47 | 50 | PDF Spec |
| MTPA0106-250 | 1000.00-6000.00 | 250 W, 1-6GHz Microwave Amplifier | 54 | 54 | 250 | PDF Spec |
| MTPA012P5-1000 | 1000.00-2500.00 | 1000 W, 1-2.5 GHz Microwave Amplifier | 60 | 60 | 1000 | PDF Spec |
| MTPA012P5-200 | 1000.00-2500.00 | 200 W, 1-2.5 GHz Microwave Amplifier | 53 | 53 | 200 | PDF Spec |
| MTPA012P5-300 | 1000.00-2500.01 | 300 W, 1-2.5 GHz Microwave Amplifier | 55 | 55 | 300 | PDF Spec |
| MTPA012P5-500 | 1000.00-2500.02 | 500 W, 1-2.5 GHz Microwave Amplifier | 57 | 57 | 500 | PDF Spec |
-
